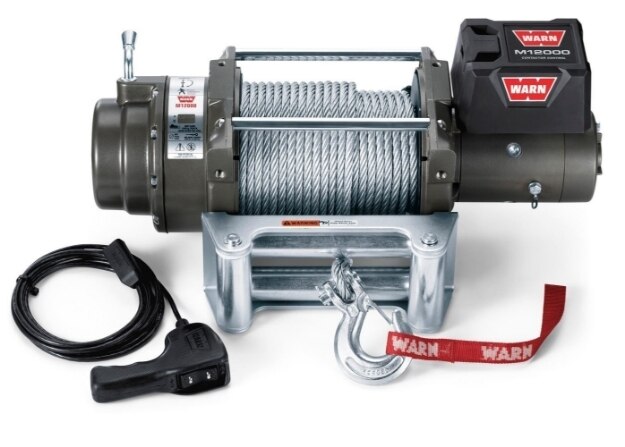

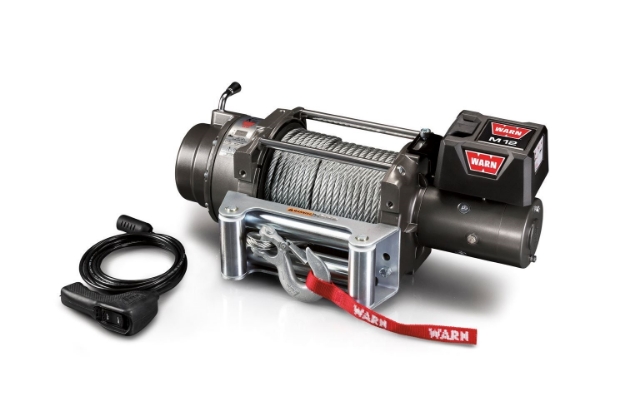

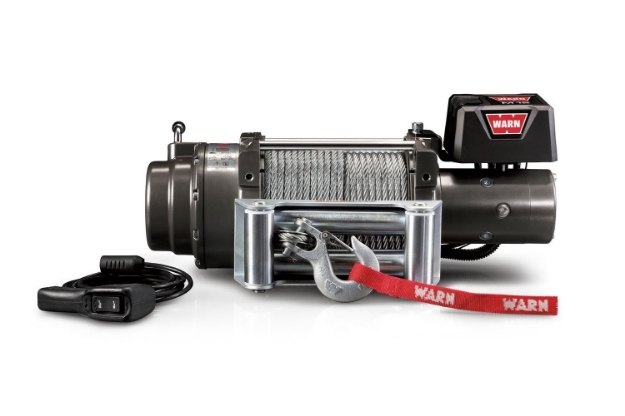

OVERVIEW
Big torque, 12,000 lbs. of pulling power, and fast no-load retrieval speed give the M12 a great combination of heavy-duty capacity and high performance. If you’ve got a big truck and are looking for a true workhorse, this winch is where it’s at.
- 12,000 lb. (5,440 kg) pulling capacity (single line)

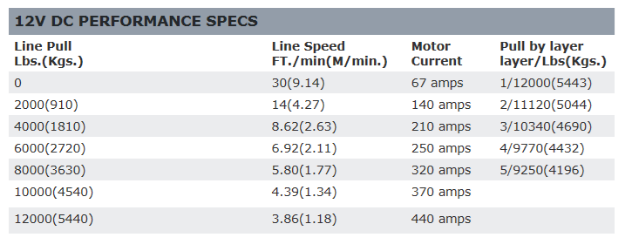

- Max Line Pull/ Line Speed – 12000 Pound / 3.86 Feet Per Minute
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12′ (3.7m) lead
- Chip-resistant powder-coated finish
- 125′ of 3/8″ (38m of 9.5mm) diameter wire rope
- Does include Mounting Hardware, winch mount not included
- Remote Type – Remote control with 12′ cord.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specifications
RATED LINE PULL 12,000 Lbs., (5440 kg) single-line
MOTOR Series wound
ELECTRICAL CONTROLS Contactor
REMOTE CONTROL Remote switch, 12’ (3.7m) lead
GEARTRAIN 3-stage planetary
GEAR RATIO 261:1
CLUTCH (FREESPOOLING) Rotating ring gear
BRAKE Automatic mechanical cone

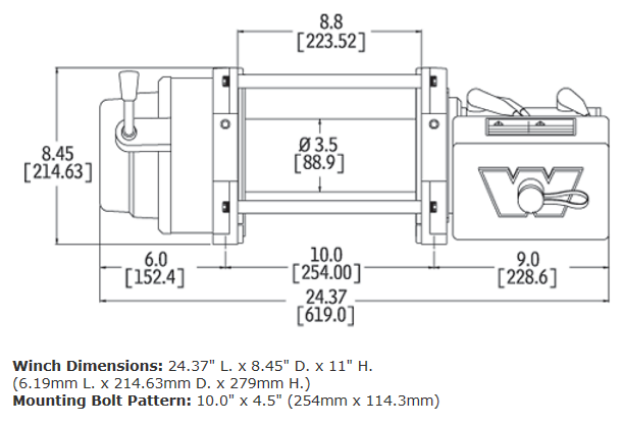

DRUM DIAMETER/LENGTH 3.5’’/8.2’’ (9cm/21cm)
ROPE M12: 3/8” x 125’ (9.5mm x 38m) steel
FAIRLEAD M12: Roller
RECOMMENDED BATTERY 650 CCA minimum for winching
BATTERY LEADS 2 gauge, 72” (1.83m)
FINISH Argent gray powder coat
WEIGHT M12: 133 lbs. (60 kg)
WARRANTY Limited lifetime (mechanical components); seven year (electrical components)
Manuals and Literature
Please see the Product Literature page for winching guides and installation manuals.
