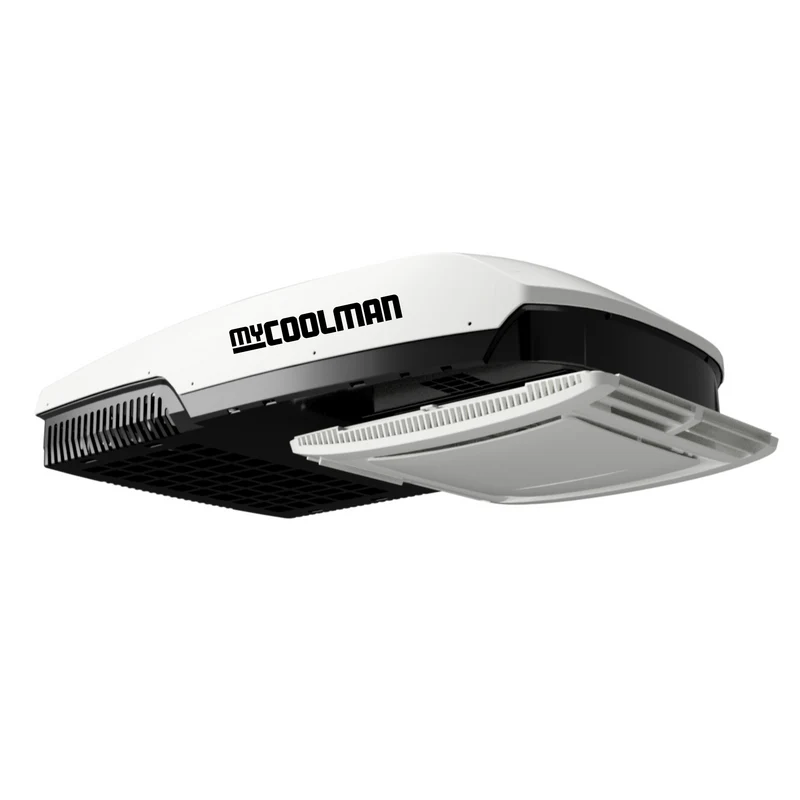

myCOOLMAN Roof Top Air Conditioner 3KW

SKU: CCA3000ICategories: ,

About

The myCOOLMAN Rooftop AC combines sleek, modern, aerodynamic design with powerful functionality. It doesn’t just cool and heat—it enhances the look of your setup. Enjoy full Bluetooth app connectivity, allowing you to control and monitor your system directly from your smartphone for ultimate convenience.

With a 3000W (3kW) output for both cooling and heating, this unit delivers rapid, efficient temperature control whenever you need it. Built with advanced technology, it reduces power consumption for sustainable operation—perfect for off-grid setups using a battery bank via inverter or generator.

Experience whisper-quiet performance and a smooth, soft start for uninterrupted comfort. Weighing just 35.8 kg including the Air Distribution Box (ADB), it’s designed for easy installation without compromising durability.

SPECS

Physical Details
Type

Inverter Style Compressor

Cooling Capacity

3000W

Input Power Cooling

1200W

Heating Capacity

3000W

Rated Input Voltage

220V-240V/50/60HZ

Maximum Current

7A

IP Rating

IP55

Rated cooling input current

5.5A

Rated heating input current

5A

Max Pressure (high)

3.5Mpa

Max Pressure (low)

1.3Mpa

Circuit Protection

15A Fuse or Circuit Breaker

Cable Section

2.5mm2 Copper & Length

Cable Length

Not more than 8m

Airflow

550m3/h

Operating Temparature

~ 2°C ~ 55°C

Refrigerant

R410a

Refrigerant Quantity

630g

Dimensions

1107 x 718 x 225mm

Installed Weight

35.8kg

Installation Requirements

360x360mm or 400x400m Cutout / 20-100mm Roof Panel Thickness

Warranty

3 years
