OVERVIEW

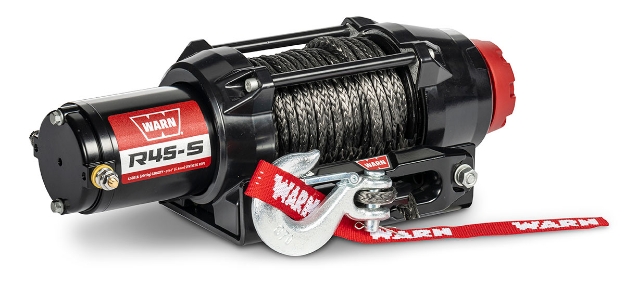

WARN R-Series Powersports Winches offer reliable performance from a name you can trust. With capacities ranging from 2,500 lbs. to 6,000 lbs. —our highest capacity powersports winch ever — we offer something for every ATV, UTV, or even a small pickup or SUV. R-Series has the features you want, the power you need, and a price that won’t leave you stuck looking at lesser brands.
- BACKED BY WARN – Engineered in Oregon, built to WARN specs, and thoroughly tested for quality control.
- WATERPROOF – IP67 waterproofing keeps the water, dirt, and debris out and reliability in.
- DURABLE – Highly efficient and strong all-metal three-stage planetary gear train is built to last.
- COMPACT DESIGN – Easy to install.
- RELIABLE BRAKE – Automatic load-holding brake for excellent control.
- SUPERIOR WARRANTY – 5-year mechanical warranty, 3-year electrical warranty, supported by a US-based customer service team.
SPECIFICATIONS
Rated line pull (single line) R45, R45-S, 4,500lbs (2041kg)
Motor: 12V DC permanent magnet
Sealing: IP67 rated waterproof
Gear train: R35, R35-S, R45, R45-S, R60-S: 3-stage planetary
Fasteners: Zinc plated
Rope: R45-S, R60-S: 50’ x 1/4” (15m x 6.3mm) synthetic
Hook: Zinc plated
Fairlead: R25-S, R35-S, R45-S, R60-S: cast aluminum hawse
Primary Controls R45, R45-S, R60-S: dash-mounted rocker switch
Remote control: R45, R45-S, R60-S: hand-held corded remote included
Brake: R35, R35-S, R45, R-45-S, R60-S: mechanical brake
Warranty: 5 years mechanical, 3 years electrical
Dimensions: R45, R45-S: length: 14.6” (371mm), height: 4.7” (120mm), width: 4.6” (117mm)
Mounting Bolt Pattern: R45, R45-S, R60-S: 3” x 6.59” (76.2mm x 167.4mm)
